ECC88 NOS TUBES
(Last updated: 15-Jul-2016 23:28 )

. Normal Ratings Maximum ratings
Europe
USA
Uf
If
(mA)

Gm
(Ma/V)

Rp
Ohm
Gain
Uf
(V)
Pa
(W)
Ug
(V)

Ua
(V)

Ia
mA

Ig,o
(uA)

Noise
(mV)

1) DO NOT USE THIS DATA AS DESIGN DATA. USE ORIGINAL DATASHEETS.

2) There is worldwide confusion about what is positive and what is negative when we write Uh-k is +50V and -150V. Uh-k=-150V means you connect + to the heater and - of your meter to the Cathode, and then read -150V. (Like this, and no other way!) May seem a silly advice, but it is a popular mistake.

Also read here

Uh-k. Heater to Cathode. Read below, how to connect the voltmeter. Eech test must be in between following limits:

ECC88

6DJ8

6,3V

365
.
.
.
.
1,8
-50
130
25
.
.
ok between +50 and -150 V

E88CC

6922
6,3V
300
.
.
.
.
1,5
-100
220
20
.
.
ok between +60 and -120 V

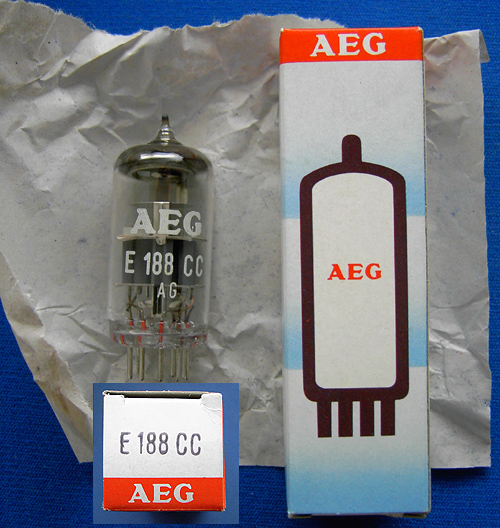

E188CC
7308
6,3V
335
.
.
.
.
1,65
-110
250
22
.
.
ok between +60 and -120 V
PCC88
7DJ8
7,0V
300
.
.
.
.
1,8
-50
130
25
.
.
Version of ECC88 only for Televisions.
PCC188

7,0V
300
                    Version of ECC88 only for Televisions.
6N1P
-
6,3V
600+/-50
.
.
.
5,5...7
2,2
.
300
20
1,0
100
ok between +100 and -250 V
6N1P-VI
-
6,3V
600+/-50
.
.
.
5,5...7
2,2
.
300
25
0.5
80

ok between +120 and -250 V . This is a jewel. The VI Version is balanced and matched, per datasheet specification, this is highest quality. The rejects were probably sold a standard 6N1P, this is normal.

6N1P-EB
(=6N1P-EV)
-
6,3V
600+/-25
.
..
.
6...6.6
2,2
.
250
25
0.2
50
ok between +120 and -250V. Low noise version of 6N1P.
6N23P
-
6,3V
310+/-25
.
.
.

5,5...7

1,8
-200
300
20
0.2

150

ok between +150 and xxx V
6N23-EV
-
6,3V
310+/-25
..
.
.
6...6.6
2,0
-220
300
20
0.15
75
ok between +200and xxx V

6H30

-
6,3V
825
7,6
2000
15
.
4
.
400
40
.
.

Large dimension ECC88, with higher dissipation. Electrically not compatible!
Tube fraud: Unfortunally a big item particularly with this tube number. On internet auction sites, tubes are re-labelled, retro-gold plated, re-branded and used tubes are put in re-printed new boxes with the stamps ne-newed. It's an incredible mess at the moment. So you think you buy NOS, but they're not. Don't try to be Mr. Lucky on internet auction sites. They are waiting for you there. The most frauded tubes there are ECC803S and ECC88, because thes are practically unavailable as NOS tubes. Don't trust it when a sellers offers those repeatedly for low prices. This is not possible for the most wanted part numebrs. Buy only from reliable sources!

Special attention needed: This tube excist as normal grid tube and as frame grid tube. The frame grids have generally better parameter stability, lower noise and lower hum. These are the later technology, and also a technology only very few could make. Frame grid wires can be as thin as 10um, which is technologically speaking a masterpiece of fine mechanics. The frame grid wire is so thin, when you open up a defective tube, you can not see it with the bare eye. To give you an idea, the size of a large bacteria is 5um. When frame grid tubes, we write it in the description.

The Russians made very special quality grade 6N1P-EB. This is a much improverd version of ECC88 made, with higher voltage capabilities, higher plate dissipagtion, and better in many many ways. However they bias not as trhey shouls in all circuits, and have slightly lower gain. These have lower noise, and less distortion. Mind you they draw twice the heater current. So you may be able to use them in a ECC88/E88C ciruit, but first verify this with the seller of the amplfier, or try it at your own responsibility.

Is your ECC88 microphonic? Try the DUENDE tube rings we sell. This may help you more than changing tubes. The Duende dampers are GUARANTEED to give an audible improvement. We have Money-back guarantee on those. Also you should try the Svetlana types 6N1P. The ones we sell, are "EB", also when not specified like this, it's what they are.

Is your ECC88 humming or making noise? When no, then skip this text. Used tubes of this type generally have more hum and noise. In many problem cases, the ECC88 is not used correct. Even with top-name amplifier manufacturers we see the same old errors, resulting from arrogancy, like not reading a datasheet. (reading datasheets in DETAIL seems to be a "no no" when somebody has some decades of experience. Strangely so, but I see it over and over again. When you refer to finest datasheet details, they say they don't need to know, they have already "30 years experience". Well, I think experience and detailed product knowledge is the same! Anyway, not reading the datasheet may work with most tubes, but not with all. The negative result is, end users have to swap tubes all of the time, and desparately try to draw conclusions from this. The next three boxes are a short overview of the most important thing to check, in case of a problem. Only do these measurements inside your amplifier, when you have experience with this. Leave it up to a technician otherwise.

Low Noise types: Use 6N1P-EB or original NOS Tesla E88CC gold grid version.

1) Heater to Cathode: (Called Uh-k)Test with DC Voltmeter: Red Lead Pin4, and Black lead on Pin3 and Pin8. (see llimits in above table). This is a very critical one, and can cause a good tube to get defective, or give hum, sparks or other noise, when exceeded.

Also read here

2) Anode voltage: (Called Ua) Test with DC Voltmeter between Pin 1 and 3, and between Pin 6 and 8. (see limits in above table)
3) Filament voltage: (Called Uf)Test with Voltmeter between Pin 4 and 5. Set it on AC, and if nothing is read, set it on DC. (see limits in above table)

BIG QUESTION: WHAT IS THE DIFFERENCE BETWEEN ECC88 and E88CC? Here are the possible answers, only ONE answer is correct. If you don't know the answer.... Read this table from the beginning. Hehe ;)

Gold Grid with some of the TESLA E88CC. Click here
Detailed Test report, comparing E88C JJ with TESLA NOS . Click here.
EHX new production 6922 under the microscope. Click here.

NOS Supply situation:

Not good. The only NOS that can be found still is Philips ECG, and Tesla. All others are gone, gone, gone. Folks, both TESLA and PHILIPS ECG are the finest NOS tubes you can buy at the moment, for a reasonable price. TESLA is even a frame grid tube!



How these tubes are tested

FAQ Frequently Asked Questions

Attention: This is an export Price List, valid for companies in the European Community with a VAT Identification number, and for companies or private persons outside the European Community.    Inside Europe,  please ask for a quote, including VAT tax. (The VAT rate is 16% until Dec31st. 2006, and after that 19%)

Tube
...
 Condition
Qty.
EURO



FEBRUARY 2016

VERY IMPORTANT WARNING FOR FAKED ECC88 / E88CC - This is getting totally out of control at the moment.





Amperex
.Made in Holland. White boxes. Sorry, only one tube left. Check also next item, below here.
NOS
1
65,-
Brimar
New appearance, very nice and clear print. Test very good.
Used
2
18,-
ECC88
EI
Elektronska Industri, former Yugislavia. Factory does not excist any more: Original yellow-blue boxes. Made on Philips machines.
NOS
13
22,-

E188CC / 7308
National

National, made in USA.

NOS
original box

1
45,-



E188CC / 7308
"National" but made by EI

These tubes are boxed and branded "National" USA. Note, National was a tube re-branding company of very good reputation. They were supplied with first class tubes by the manufacturers, and the country of origin is always printed on the tubes. So with them, what you pay is what you get. This pair has printed on the glass: "Made in Yugoslavia". Meaning they are EI tubes. This is confirmed by the construction, there is the characteristical A-Shaped getter holder inside, and more details. Now that EI is closed since 2014, prices of EI tubes are expected to soar. (For a true happened story, read the world of NOS )

NOS
original box

1 Pair
150,- for the pair
.
Made in Holland. Clear white print like new, from spare equipment. Some tubes from equipment are sometimes actually never used. These appear like that.

Used, but
look and test like new

9

30,-


enlarge

6922
Philips

Order Number:
114-096-33

Perfect quality, good boxes. Made in USA.

JAN tested, for higher reliability.  JAN Testing is a military proces for lot qualification, which makes sure that weak production series will not pass as a whole. This is a very hard way of testing, since "good" tubes must still be rejected when they come from a production series where too many have failed the JAN tests. So you take samples, you overload them for a certain time, and when too many fail the whole lot is rejected. Now of course manufacturers could still sell such tubes on the commercial market, but the military refused to take those. This is the reason why JAN tested tubes are so often agvailable as commercial tubes also!! JAN was the first choice, the rest got sold commerically.

Done so in 1985 when these were made, but JAN testing is still used for semiconductors as well.

Read more about JAN TESTING here.

NOS
original box

Stock
See pricelist


Enlarge

E88CC/6922
RCA

Order Number:
114-095-90

Perfect quality,  good boxes. On the tube glass is acid branded "made in USA"  These test absoluetely excellent, strong emission and close to datasheet values.



NOS
original box

50
55,-
ECC88
Siemens
Made in Germany. Original orange box
NOS
2
55,-
6DJ8
Sylvania
Nice green stamps. White box . Test good.
Used
1
11,-

enlarge


ECC8100
Telefunken
Gold pin tubes.  Original boxes.  Tube nr 2 + 3 from the left, on the picturel This tube is something like ECC88, but ECC8100 is specially made for cascode circuits. Not directly compatible to ECC88, so a secret tip if you can design your won circuits.
NOS
15,-


E88CC
Telefunken

Order Number:
114-133-88



Original box. <> Bottems, made in Ulm, Germany, with factory series numbers on the tubes. Excellent NOS. These come with Amplitrex computer test report. That is: All tube data there is, including gain, Gm, Plate impedance, grid leakage, etc, and compare it against "must be" values. From this you will see, these are TOP CLASS NOS tubes. For a pair, order two pieces, they are automatically packed as matched pairs if you do so. Please note with some (not with all) the print text has suffered somewhat from storage. It is not much but we have to say it.

What is best, we had a small lot, and we have been able to select them all in perfectly balanced and matched pairs. This is not normal for E88CC, test values can vary widely, and you have to take them as is. However not with those! They test all at 15mA, with grid voltage variation of less than 0,2 Volt !!

Here is a Link to all test reports. So you can see it yourself. You can order any pair you like, as long as we have it available. They are pre-selected in pairs. So if you order for instance tube #4 from this list, it is pre-matched with tube #8. If you want a single you can only take the ones we have, we can not break up a pair for it.

Interesting detail with the tube box. When it writes on there "ECC88, 1" as you see on the picture here this means this tube was made in Germany, indicated by the number "1". Number "2" would mean outside Germany. This was told to me by a retired Telefunken Ulm Employee, so I think this is very reliable information.


NOS

Stock

See nornal pricelist.

ECC8100
Telefunken
White box.  Tube is offered as used, but may be new. Printing is fainted, but unburned, very white still.  Left tube on the picture
Used
12,-


E88CC
Tesla

Order Number:
114-038-92

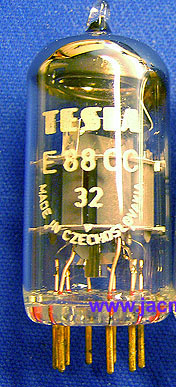

Click for high resolution picture here. Gold Grid Version. High Quality tubes from the Prague factory (Code32) . Original old blue boxes. These were made for the military, as you can see from the sword signs on the back side of the tube. This is probably the best ECC88 ever made. It is fully equivalent to the Telefunken ECC88 apart from the <> sign, and of course these TESLA have gold pins, which the Telefunken have not. For the rest every little detail is identical. This batch had very good values.

The order numer 114-038-92 is for a Matched + balanced PAIR, with printed Amplitrex test report. So all four systems of this pair are the same.

These are no JJ Tubes! Read some more about TESLA Tubes.

Gold Grid Information. Click here

NOS
original box

Order nr for a matched and balanced pair:

114-038-92

Stock

See nornal pricelist.


E88CC
Tesla

Enlarge picture. Frame grid tube. Normal Pins. HQ tubes made for the Czech post, from the Rosnov factory (Code37). From Bulk pack.  All from the same factory code. Very good selected, and this batch has very high test values. These are no JJ Tubes. Read some more about TESLA TubesSupplied in BALANCED, MATCHED PAIRS. PRICE IS FOR A SINGLE TUBE.

NOS

Order nr:
114-069

Stock

See nornal pricelist.

E88CC
Tesla

Same as above. With good test value also, but these we could not match.

Tube#1 10.5 + 8mA
Tube#2 10.5 + 12mA
Tube#3 12.0 + 8mA
Tube#4 12.5 + 8mA

At Funke W19 , "good" starts at 6mA so these are all very strong.

NOS
4
16-

Look here, the famous Hickok 539C used to cost 750$, 40 years ago
If we add 4% per year to that, for inflation, we talk about 5200$ now.
