Telefunken RE-xxx Tubes
(Last updated: 08-Mär-2017 14:09 )

Nixie and Magic Eyes - Triodes - Pentodes - Rectifiers and Stabilizers - NOS Sockets - NOS Capacitors

How these tubes are tested

FAQ Frequently Asked Questions

Attention: This is an export Price List, valid for companies in the European Community with a VAT Identification number, and for companies or private persons outside the European Community. Inside Europe, please ask for a quote, including VAT tax. (Since 2021 we must charge the VAT of the receiving country)

Tube
Item
Year
Description
Condition
Qty
EURO


RS291 Telefunken

.
1943

These are at a good place here, because today's application is to triode connect those. This is a very nice looking pair. Fully identical looking, test fully identical and extremely strong. Wow!!!! 211 or 845 are toys compared to those old Telefunken jewels. Both tubes are believed to be NOS.

Connectors at the bottom and top are bananas, side is a fork. Original connection set for the side connector is with the tubes

CLick here for more info.


2
420 Euro for the pair

A408

(RE074)
VALVO

65
.

Very linear Audio triodes. Horizontal plates. Socket available.  Mint items, Silver top getter. White box.


Tests 7.8mA on the Funke W19. Good starts at 3.8mA

NOS
1
55,-
RE074
Telefunken
69
1940
Very linear Audio triodes. What is this
White box
NOS
55,-
RE084
Telefunken

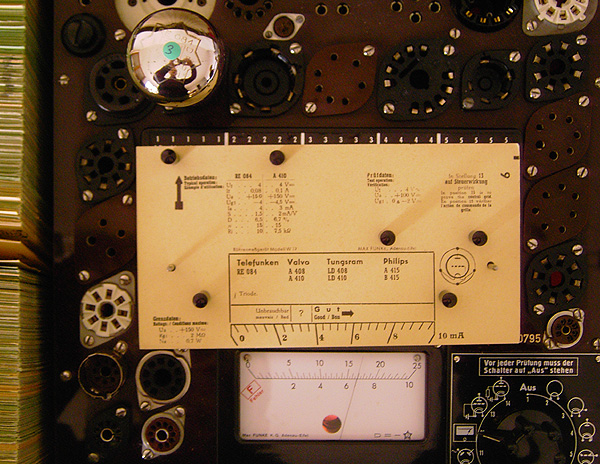

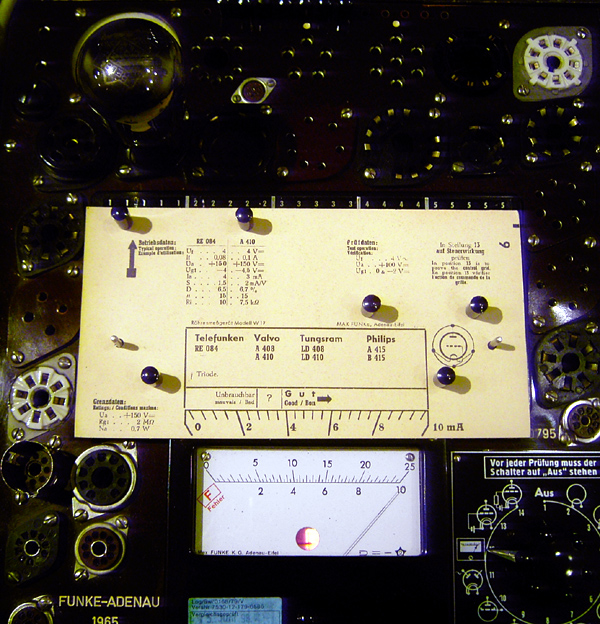

Original box. Mint appearance, mint test results. You get a full test report with it, transconductance, gain, bias, plate impedance, and more data. Done with Amplitrex tester. From old German army stock. (BwB stamps on some of the tubes added)
NOS
2
105,-

(RE084)

A408
VALVO

Prime Quality tubes, in old paper roll, with stamps on it. Inside some of the rolls is an original factory leaflet, with general information about those tubes, some have a datasheet inside also. Please do not ask to select for inside paperwork, they were opened for testing, but all are closed again now. I was the first to open the rolls, they were sealed. Mint appearance, mint test results. You get a full test report with it, transconductance, gain, bias, plate impedance, and more data. Done with Amplitrex tester. Please note the VALVO genuine part number for RE084 is A408. Appearance is the same as TFK. From old German army stock. (BwB stamps on some of the tubes added)
NOS
Small Stock
85,-
(RE084)  A410
VALVO
T142
1940

The  tube A410 can replace RE084.


Tests 9.8mA on the Funke W19. Good starts at 3.8mA

Used
1
45,-
RE134 (L413)
VALVO
76
.

This type is equivalent to RE134. Same glass shape. Heavy looking tube.


Tests 26mA on the Funke W19. Good starts at 17mA

NOS
1
75,-



RE134-S
Mullard




This is re based MULLAR UK tube, with a B4 socket, and it is fully equivalent to RE134.

New arrival, need to make a picture. Sorry only one piece.

NOS
1
65,-

RE134
Telefunken

T140
1937.

70 years, and untouched. ORIGINALLY SEALED BOXES. When you are interested in those, we have two possibilities. 1) you can buy them closed "as is" without guarantee for what's in the boxes. 2) We open the seal with a razor blade, and you only take them when the test values are good on the Funke W19. So we leave this up to the buyer. All we do for now, is picture the boxes from all (6) sides. RE134 (NOS) is the rarest, best and most sought of RE-driver tube, or head phone SE tube. Clean boxes and made on the same day (Aug. 13th. 1937). Pic1, Pic2, Pic3, Pic4, Pic5, Pic6. Sorry for the price, but we will never find this again.

RE134 gives 1 Watt SE, at 3400 Ohm.

Sorry, this pair is sold, but we leave them in for the nice pictures.

NOS
2

Sold

300,-
Euro for
the pair.




Order Nr: 114-163-67

18028 Philips
Equivalent to PTT3 , Ca
= Larger version of RE134
with post socket


Yamamoto German Post
P5-Socket
Order Nr: 320-027-62

1945

Original very old card box. Most have date code 1945 and VALVO Hamburg stamped on the box. This shows once more the close relation between Philips and Valvo Hamburg.

These are identical to the RT France PTT3. Thanks Aaron Karmelk for this information!

They have a five-pin Siemens socket (same as German Post tubes). The fifth pin is used for socket shielding, same as the "red" painted Philips tube all have. So very nice for HiFi. I have gorgeous wooden Sockets from Yamamoto, gold plated for this tube.

This tube is a nice linear Triode, in globe bulb. It tests perfectly at RE134. Gain, Bias, transconductance, plate impedance, and tube curves, it is all the same!! However, 18028 maximum plate dissipation I think must be higher than RE134.

For maximum plate dissipation, I just don't know officially, and I must make further measurements. I will do so later. Whereas RE134 is only 3Watt, I estimate the 18028 is somewhere between 6...9 Watt

Moreover, 18028 has a ground pin. This is actually a metal ring inside the tube socket, and it acts as a ground shield nicely. As you know, 18028 is a triode, so it has four pins, and the fifth pin of the socket is used to provide the shield connection. So the shield is optional, but it is a good idea to use it. Just connect it to one of the socket screws, with a short wire, and it will be electrically grounded that way.

A VERY nice tube to work with!

Use the nice Yamamoto wooden sockets, made of epoxy treated wood, and gold pins. They are not even so expensive.

Test Values
are great :)

Philips
18028
Original Boxes from
the world war

Article about this tube here

NOS
Stock
95,-



(RE144)
A411
Valvo

72
1940
The tube A411 can replace RE034 or RE144

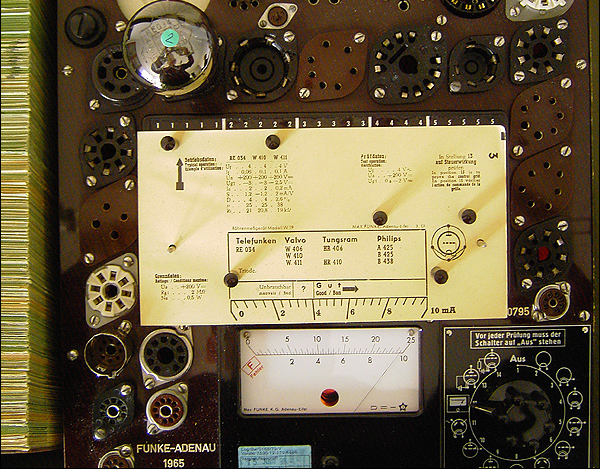

Tests excellent on Funke W19 with S=1,2mA/V  and  Ia=7.8mA. with settings of RE034.  Good starts at 4mA. Packed in original roll, with historical guarantee papers included

NOS
55,-
