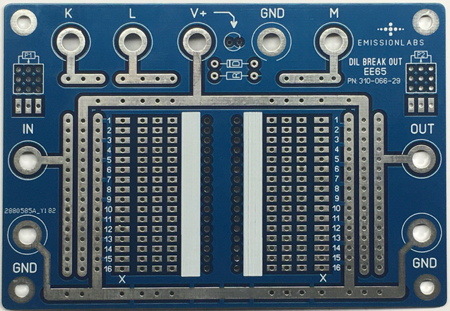

E65 Integrated circuit Break Out Board for DIL IC
Board Order Number: 311-065-29
The order number is for the bare PCB.
Banana connectors for power supply and other connections are low cost Chinese type.
- The IC is mounted in the center. The horizontal solder islands on each side are electrically connected.
- Because pin numbers of the IC is unknown, you can write the numbering on the white field, or write the pin functions there.
- K, L and M are random connections, one could ne used for negative power supply
- In V+ a 3mm LED can be connected, with anti parallel diode.
- Room for two PCB potentiometers
