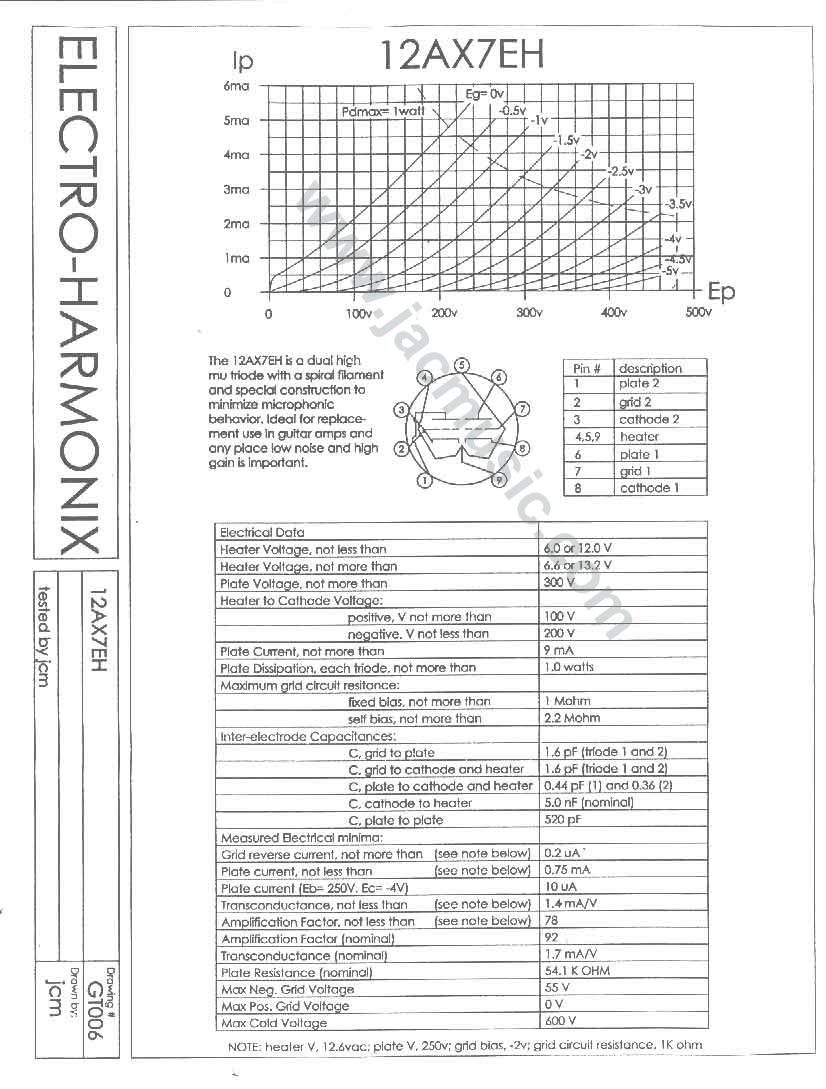

TYPICAL
CHARACTERISTIC:
| Ua |
=
250 V |
| Ug |
=
-2 V |
| Ia |
=
1,2 mA |
| S |
=
1,6 mA/V |
| Ri |
=
62,5 kOhm |
| µ |
=
100 |
|
OPERATING
CHARACTERISTICS:
Resistance
- coupled amplifier cathode grid base
| Ub
= |
250 |
400 |
250 |
400 |
250 |
400 |
V |
| Ra
= |
47 |
47 |
100 |
100 |
220 |
220 |
kOhm |
| Rg
= |
150 |
150 |
330 |
330 |
680 |
680 |
kOhm |
| Rk
= |
1,2 |
0,68 |
1,5 |
0,82 |
2,7 |
1,2 |
kOhm |
| Ia
= |
1,18 |
2,45 |
0,86 |
1,72 |
0,48 |
1,02 |
mA |
|
LIMITING
VALUES:
| Ua |
=
300 V |
| Wa |
=
1 W |
| Ik |
=
8 mA |
| Ug |
=
-50 V |
| Rg |
=
2,2 MOhm |
| Uk/f |
=
180 V |
| Rk/f |
=
150 kOhm |
|
CAPACITANCES:
|
system
I |
system
II |
| Cg/k |
=
1,6 |
1,6
pF |
| Ca |
=
0,33 |
0,33
pF |
| Cg/a |
=
1,7 pF |
1,7
pF |
|
